IMF2262 – 1.7 GHz Cutoff

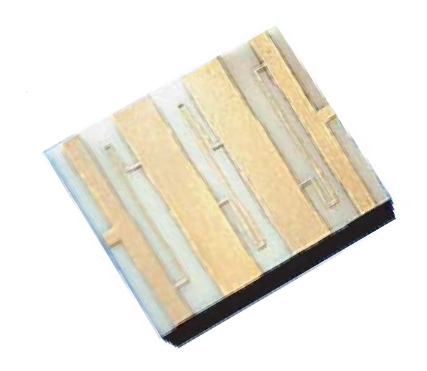

IMF series 2262 Thick Film L-Band Low Pass Filter

IMF Series Thick Film L-Band Low Pass Filter

The IMS IMF Series low pass filters (LPF) afford the customer performance of a custom designed filter with the price and delivery closer to that of an off-the-shelf solution. Circuit construction is lumped/distributed element SMT microstrip on alumina, which enables higher performance than an equivalent off-the-shelf packaged device. Tooling costs are held to a minimum.

These filters are for engineers who need a robust and precision design. They have been successfully tested to input power levels exceeding 40W. Part-to-part performance repeatability is excellent in high or low volumes.



IMF2262 SPECIFICATIONS

Passband: up to 1.6GHz
Rejection: 25dB minimum maintained to 3rd harmonic
VSWR: 1.1:1
Insertion Loss: 0.5dB typical
Impedance: 50Ω
Dimensions: 0.550”L x 0.400”W x 0..025”H
Power: 20-40W depending on baseplate temp.
Substrate: Alumina



DOWNLOAD DATA SHEET
